How to Set Squat Rack Safety Arms for Squats and Bench Press

1. Read both manuals. Confirm the arms are approved for the exact rack model, upright size, hole diameter, and mounting location.
2. Stabilize the rack. Bolt it down or install the specified feet or stabilizer. Outside-mounted arms create leverage; REP requires additional support for certain four-post setups.
3. Inspect the pair. Check welds, pins, latches, liners, end stops, and the upright holes. Stop if anything is bent, loose, cracked, or missing.
4. Remove nearby interference. Stored plates, cable trolleys, lever arms, and benches must not block installation or the bar's catch area.
5. Unload the bar. All setup and first verification steps use an empty bar.

1. Face each arm in the direction shown by its manual; observe left/right markings when present.
2. Seat the upper hook or channel fully around the upright.
3. Swing or lower the arm into its locked position without trapping fingers.
4. Insert every required hitch, detent, or locking pin completely.
5. Count holes from the same rack reference point so both tops are level.
6. Push and pull each unloaded arm by hand. It should not lift off, rotate open, or rock excessively.
7. Confirm the bar shaft—not only a sleeve or plate—will land across both protected top surfaces.

If the pin fits only loosely, the channel does not sit flush, or a crossmember prevents locking, revisit the rack attachment compatibility checks.

1. Set the J-cups for a clean unrack without rising onto the toes.
2. Place the empty bar in your normal back-squat position and use your normal shoes and stance.
3. Walk out to the same location you will use when loaded.
4. Descend under control to your normal, technically acceptable bottom depth.
5. Have a competent helper compare the bar shaft with the arms, or record a side view without changing position.
6. Set both arms one usable increment below the lowest bar position.
7. Repeat the empty-bar squat. The bar should not tap the arms during a correct rep.
8. With instruction from a qualified coach when needed, practice the exact no-load exit method appropriate to your rack and squat style. Do not learn a bailout for the first time under load.

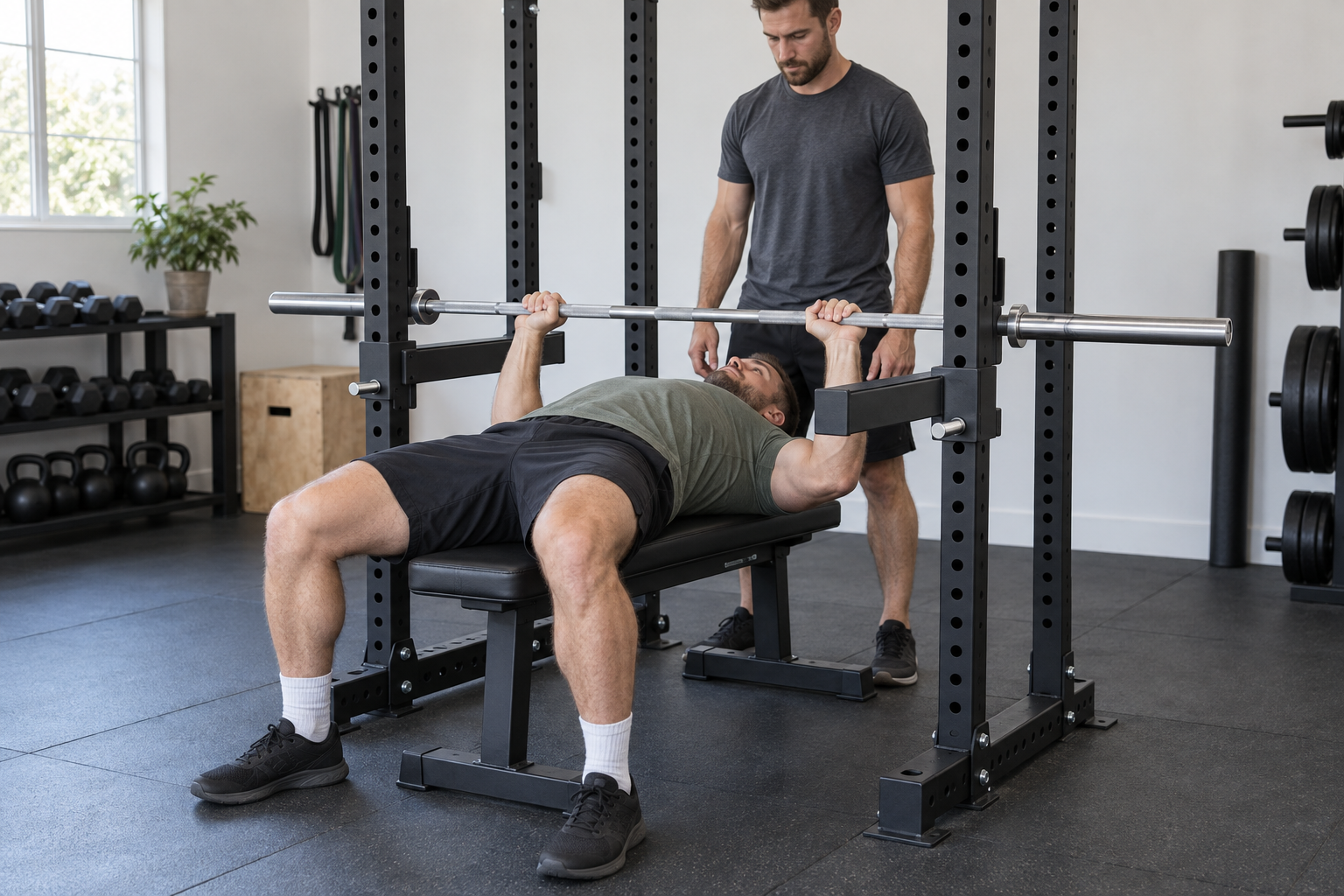

1. Place the exact bench in its final position and prevent it from sliding.
2. Lie down with your normal head, shoulder-blade, grip, foot, and arch positions.
3. With a spotter present, unrack an empty bar and lower it to your normal chest touch point.
4. Set the arms as high as possible without the empty bar contacting them during that touch.
5. Re-rack, then flatten your arch and chest while remaining on the bench.
6. Gently test with the empty bar. The arms must catch it above the throat and face, with no path that lets it roll toward the neck.
7. Repeat the test after any change in bench, pad angle, rack position, grip, arch, or user.

• Spotter arms: quick to move and useful outside compatible racks; they create leverage on the uprights and base.
• Safety straps: can be offset front to back to guide a caught bar away from the lifter, but both strap ends and the strap condition must be checked.
• Pin-and-pipe safeties: span a rack and have a simple load path, but take longer to move and must pass completely through both uprights and pipes.
• Flip-down safeties: rigid and convenient, but the exact rack width, pin engagement, and rated uses matter.

Use only the system the rack manufacturer approves. Do not combine parts from different systems to improvise a catch mechanism.

• Correct pair, correct orientation, equal height
• Hooks and channels fully seated
• Every locking pin fully engaged
• Rack anchored or stabilized as required
• Bar lands across both arms within their usable length
• No plates, bench parts, cables, or storage in the catch path
• Empty-bar clearance and catch tests completed for this exercise and user

Safeties reduce risk; they do not replace sound technique, sensible loading, a spotter, or the manufacturer's rules.
