How to Adjust a Treadmill Belt: Centering vs. Tension

Start with the treadmill level, at zero incline, and free of anything trapped near the belt. Observe the machine from the rear at the lowest speed allowed by the manual, without standing on it. Then stop the treadmill before inspecting more closely.

The rear bolts move the idler roller, but manufacturers do not publish one universal procedure. Direction, bolt choice, belt speed, adjustment size, and the final tension test can differ—even within one brand.

• The manual for the exact model and version. Keep the centering and tension pages open.
• The supplied hex key or the exact replacement size. A loose-fitting tool can round the adjustment socket.
• Painter’s tape and a pen. Mark each bolt’s starting position so every change is reversible.
• A ruler or tape measure. Use it only if the manual gives a measurement or if you are comparing left and right gaps.
• A clear work area. Keep hair, clothing, children, pets, and loose objects away from a moving belt.

Set the incline to the manual’s recommended service position—usually level—before beginning. Check that the treadmill itself sits squarely on a stable floor.

1. Confirm the treadmill is level. Check front-to-back and side-to-side stability. If the frame rocks or the floor slopes, correct that before changing roller alignment.

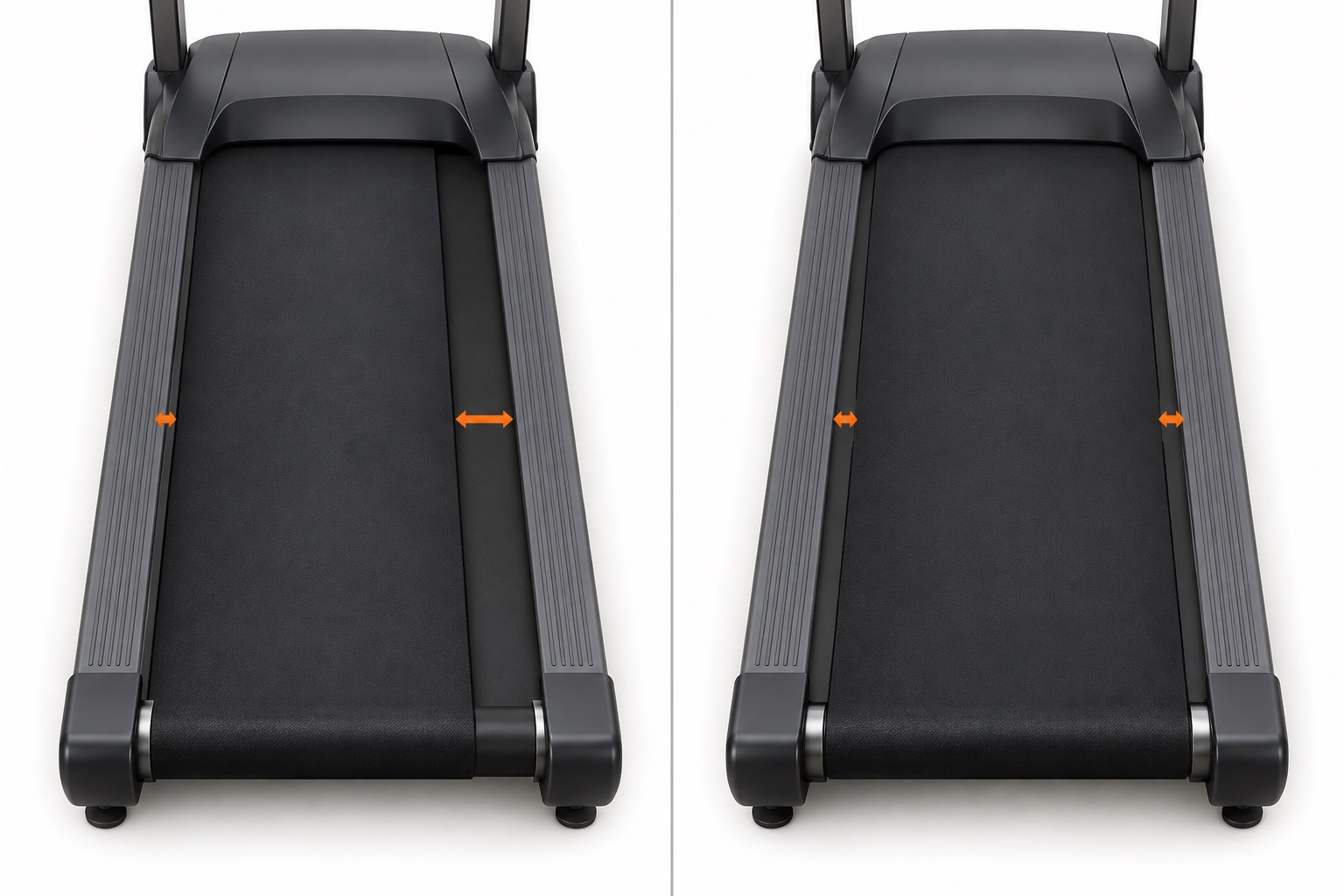

2. Watch the unloaded belt at the approved low speed. Stand behind and to the side, never on the moving belt. Note which edge is closer to its rail and whether the gap continues changing.
3. Stop according to the manual. If your manual says to remove the safety key and unplug before turning a bolt, do that every time. Only make a live adjustment when the exact model instructions explicitly require it.
4. Mark the starting position. Put a small painter’s-tape index beside the adjustment bolt or mark the hex key orientation. This lets you count quarter turns and return to baseline.
5. Use the bolt and direction specified for that model. Make one small increment—commonly a quarter turn, but never more than the manual allows. Do not use a generic “turn toward the gap” rule; published procedures differ.
6. Test for several belt revolutions. Power on only when it is safe to do so. Let the belt settle at the specified low speed before deciding whether another small change is needed.
7. Stop when the belt remains stable. The goal is not a mathematically perfect gap at one instant. It is a belt that stays within the manufacturer’s acceptable position without rubbing during unloaded and normal-use checks.

Only begin this process when the belt is centered and the symptom is actual slip or hesitation under load. First rule out obvious contamination on the walking surface and check whether the maintenance schedule has been followed.

1. Turn off the treadmill, remove the safety key, and unplug the cord. The belt should not move while you change tension.
2. Mark both rear adjustment bolts. Use the same reference on the left and right.
3. Tighten both sides equally. If the manual uses the common method, turn each rear bolt clockwise by one quarter turn. Use the exact direction and increment in your own manual.
4. Reconnect and test. Walk at a conservative speed for a short period, checking for slip and confirming that the belt remains centered.
5. Repeat only in small equal increments. Stop as soon as slipping is gone or the model’s tension test is satisfied.

Do not use a generic lift measurement. Official NordicTrack manuals demonstrate why: one model specifies 2–3 inches, while another specifies 3–4 inches. Horizon’s guide describes correct tension functionally—as the point where the slipping sensation is gone. Your manual is the specification.

A walking belt can be overtightened during assembly, after a repair, or after repeated attempts to cure slip. Possible clues include increased motor strain, a belt that slows under load, new roller noise, excessive heat, or a belt that fails the model’s lift or deflection check.

If the manual identifies over-tension, the usual correction is to unplug the treadmill and turn both rear bolts counterclockwise in equal small increments, then retest. Do not loosen one side to solve a tension problem, and do not continue until the rear roller becomes visibly unstable.

If the belt still slows after returning it to the specified tension, work through lubrication, deck wear, power-supply, drive-belt, motor, speed-sensor, and controller possibilities instead of adding more tension. Our treadmill lubrication guide explains why lubricant requirements must also be checked by model.

• Turning a full revolution at once. Large changes make it easy to overshoot and hard to return to the starting point.
• Tightening both sides to fix a sideways belt. That increases tension without necessarily correcting the roller angle.
• Turning one side to fix underfoot slip. That can turn a tension problem into an alignment problem.
• Assuming clockwise always moves the belt the same way. Bolt arrangement and published procedures differ by model.
• Adjusting around an uneven floor. The belt may drift again as soon as the treadmill is moved or leveled.
• Testing at running speed. Centering checks should use the low speed specified by the manufacturer.
• Adding lubricant to solve every slowdown. Some belts are pre-lubricated or maintenance-free, and a slowdown may be caused by over-tension or a failing component.
• Ignoring edge damage. A frayed or folded belt can worsen quickly and should not be treated as a routine tracking adjustment.

A belt that immediately returns to the same bad position is giving you useful information. Stop repeating the same bolt turn and check the system around it.

• Look at the side gaps before a workout and after moving the treadmill.
• Keep the machine stable and level; use only manufacturer-approved leveling feet or procedures.
• Record adjustment dates and the exact number of left/right turns.
• Follow the model’s cleaning and lubrication schedule so friction is not mistaken for tension trouble.
• Do not store heavy objects on the belt or drag the treadmill by the deck.
• Recheck tracking after any belt, roller, deck, or frame service.

A stable belt should not need constant correction. Frequent re-centering is a symptom worth diagnosing, not a normal maintenance schedule.
